INDIVIDUAL MACHINES
Machines and Options

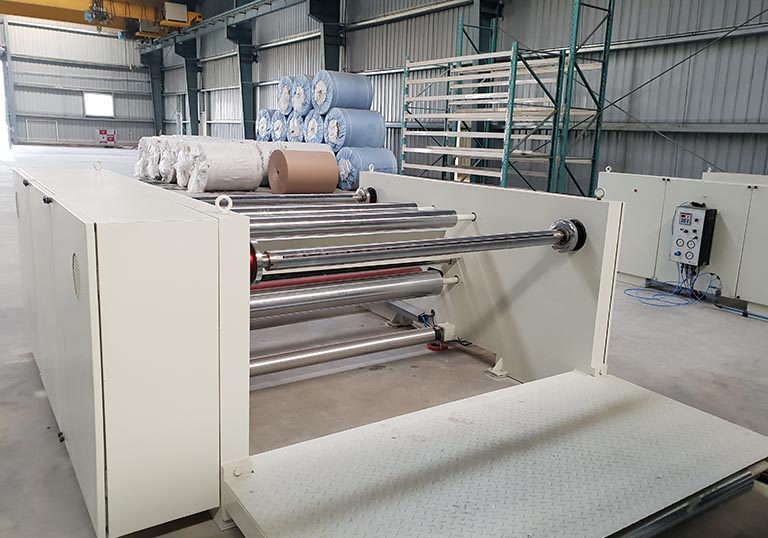

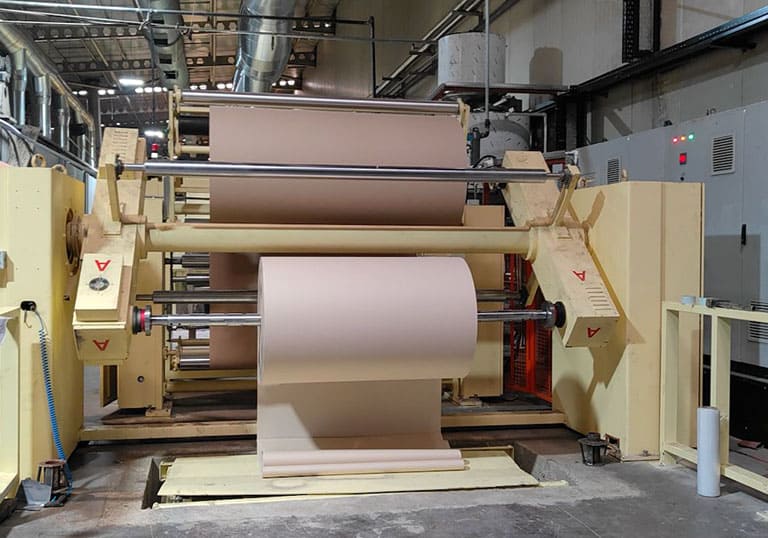

Unwinder
The unwinder is the first stage of the impregnation line and is designed to handle large rolls of paper efficiently. It ensures smooth and continuous unwinding of paper into the process line, maintaining consistent web tension and minimizing downtime. Depending on the production setup, the unwinder can be configured with manual or automatic splicing features for uninterrupted operation.
Key Features:
- Suitable for paper widths up to 2200 mm
- Roll diameter handling capacity: 1200 mm
- Maximum roll weight: 2000 kg
- Automatic/Manual splicing system
- Web tension control with Pneumatic system
- Operator-friendly loading and unloading design

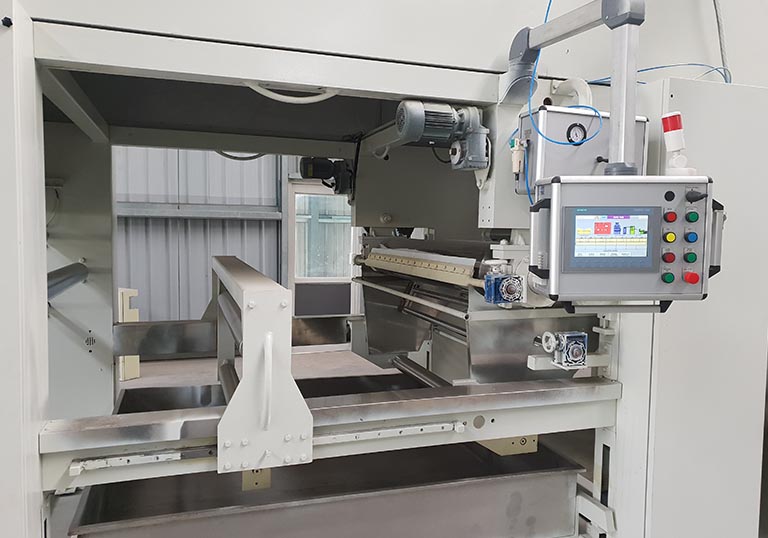

Impregnation Unit
The impregnation unit is the heart of the production line, where the base paper is impregnated with phenolic, melamine, or other specialty resins. It ensures uniform penetration and impregnation of resins across the paper surface, maintaining quality and consistency.
Key Features:
- Suitable for resin type: Phenolic / Melamine / Custom
- Temperature controlled impregnation bath with adjustable resin level
- Stainless steel construction for corrosion resistance
- Quick cleaning and changeover system

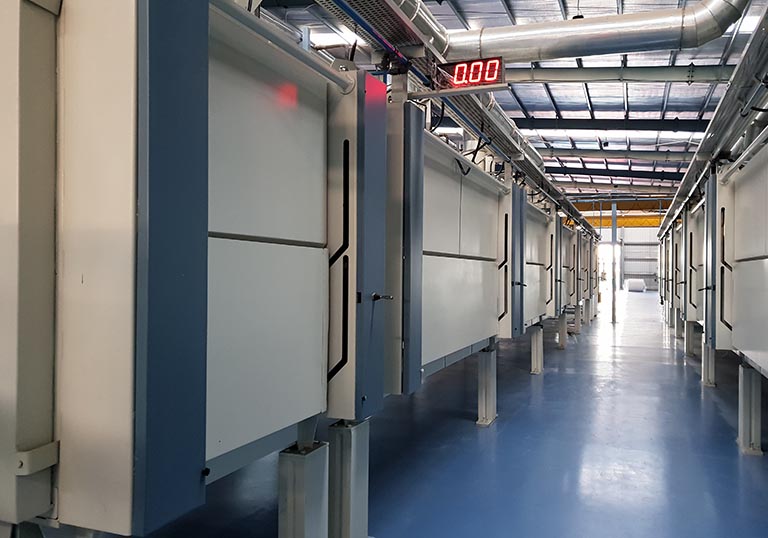

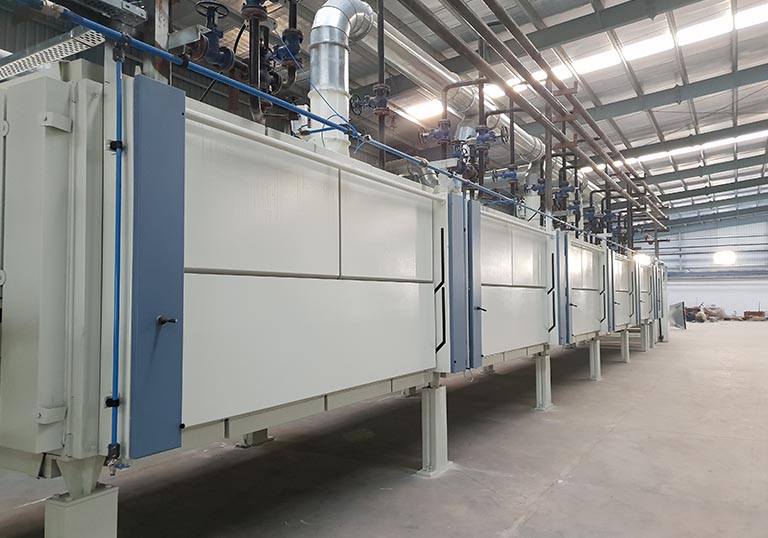

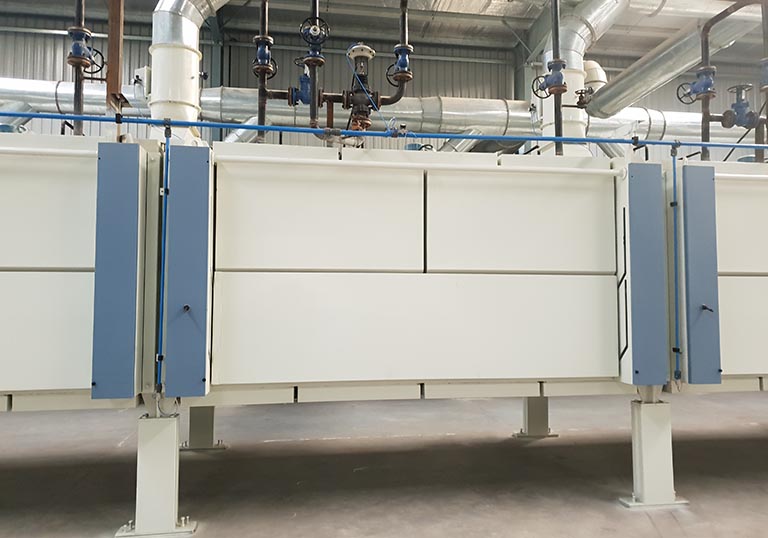

Drying Zone
The drying zone is responsible for evaporating solvents or water content from the impregnated paper. It ensures controlled drying while preventing blistering, resin migration, or paper deformation.
Key Features:
- Drying Zone length: 3750 mm each
- Temperature range: 80-200 °C
- Heating medium: Direct Gas / Thermic Oil / Steam
- Air circulation system with adjustable flow

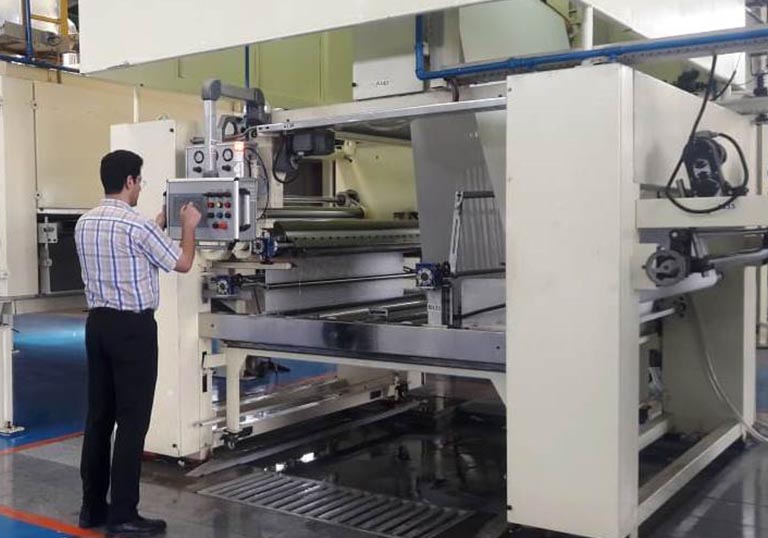

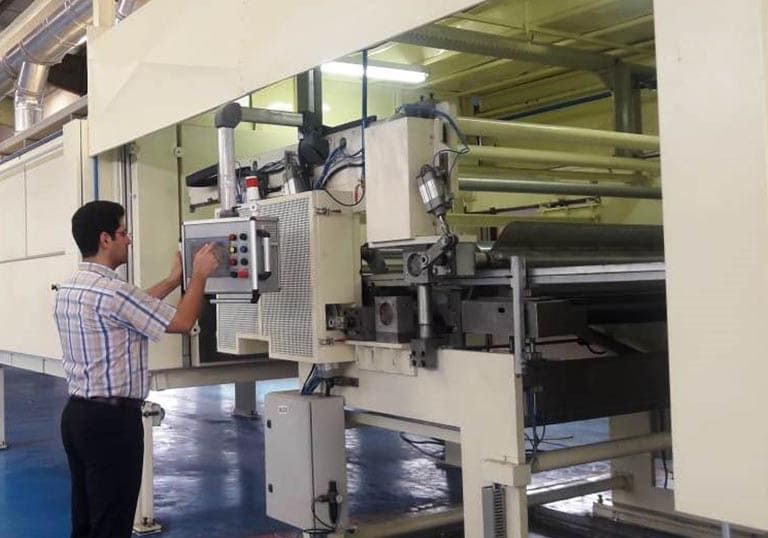

Gravure Coating Unit
The gravure coating unit provides a precise and consistent application of resins, additives, or decorative layers onto the base paper. The gravure cylinder ensures accurate coating weight control and surface finish.
Key Features:
- Adjustable coating weight: 20-35 g/m²
- Doctor blade with adjustable pressure
- Compatible with various resin viscosities

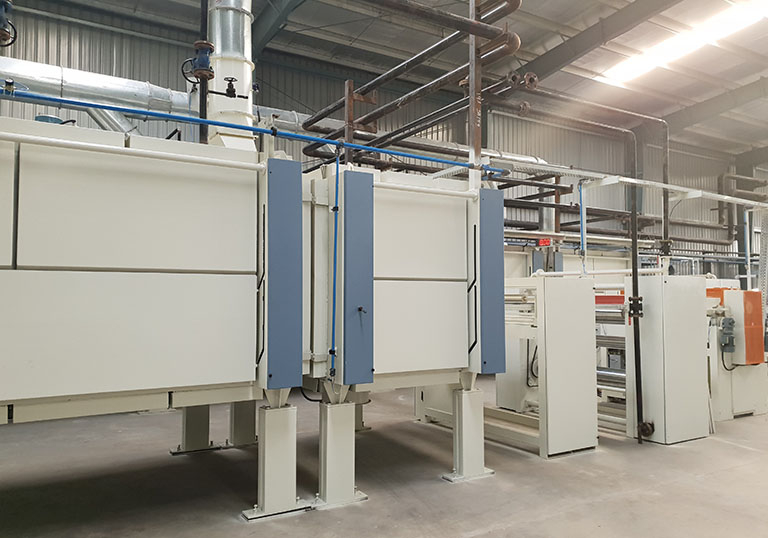

Air Cooling Unit
The web aligner ensures that the paper runs straight and centered throughout the line, reducing wastage and preventing misalignment in downstream processes.

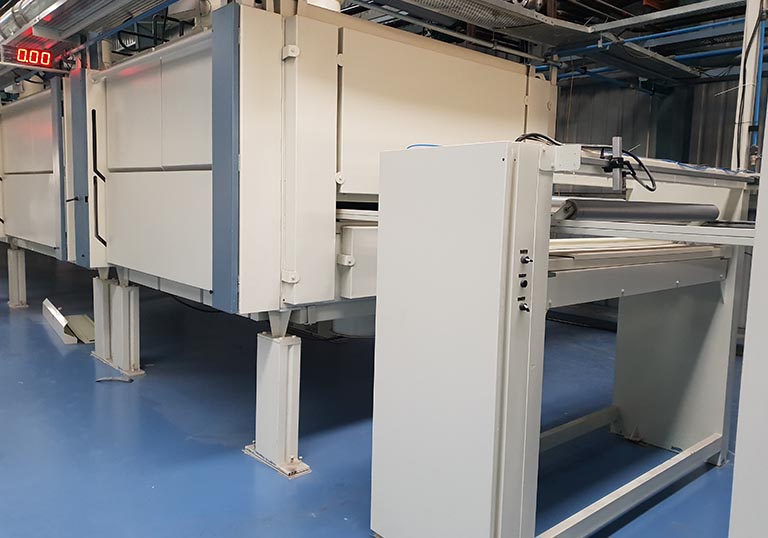

Web Aligner
The web aligner ensures that the paper runs straight and centered throughout the line, reducing wastage and preventing misalignment in downstream processes.
Key Features:
- Automatic web guiding system
- Sensor-controlled edge detection
- Correction accuracy: ± 1 mm
- Low-maintenance design

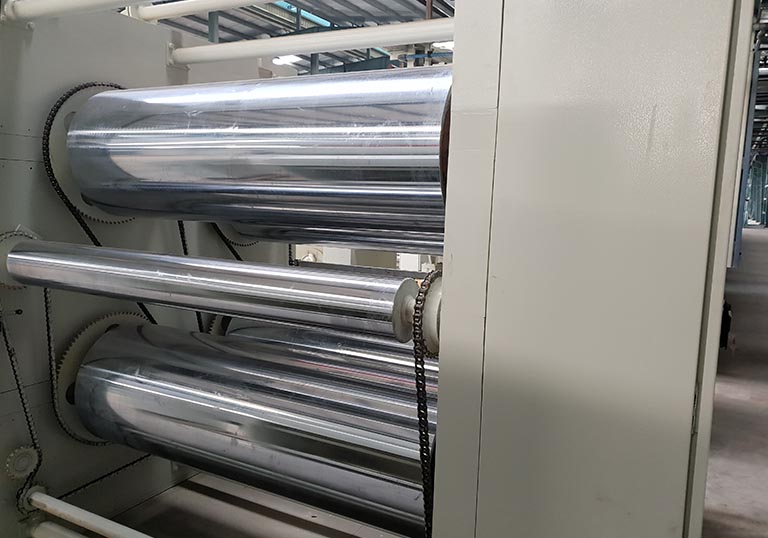

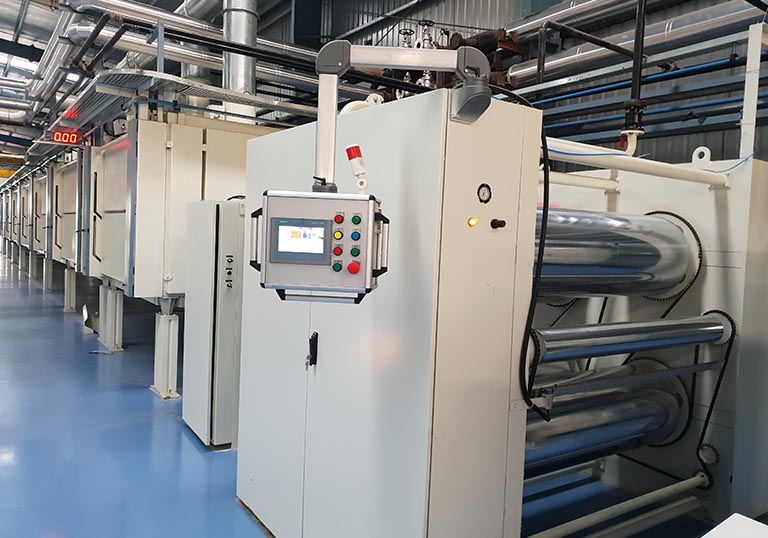

Water Cooling Unit
The water cooling unit provides an additional cooling step, stabilizing paper dimensions and improving handling before cutting or stacking.
Key Features:
- Closed-loop water circulation system
- Corrosion-resistant construction

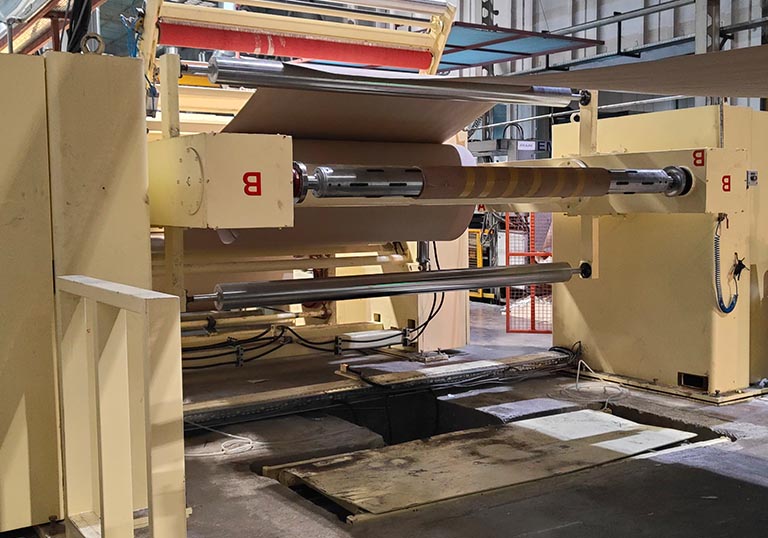

Rewinder
The Rewinder is used to neatly roll up the treated and dried paper at the end of the impregnation line. It ensures proper winding with controlled tension, allowing easy handling, storage, or transfer to the next stage of production. A reliable rewinder minimizes waste, prevents wrinkles or telescoping, and guarantees consistent roll quality.
Key Features:
- Smooth and precise winding of resin-treated paper
- Tension control for uniform roll formation
- Handles various roll diameters and core sizes
- Quick and easy roll changeover
- Operator-friendly design for reduced downtime

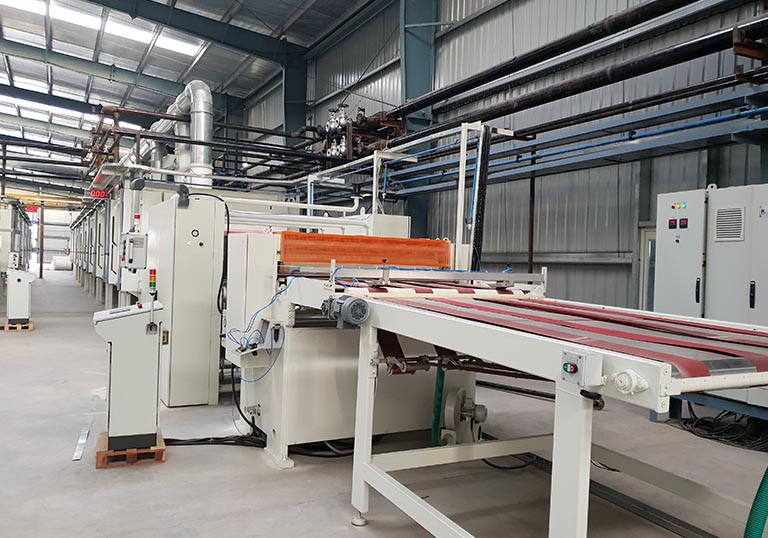

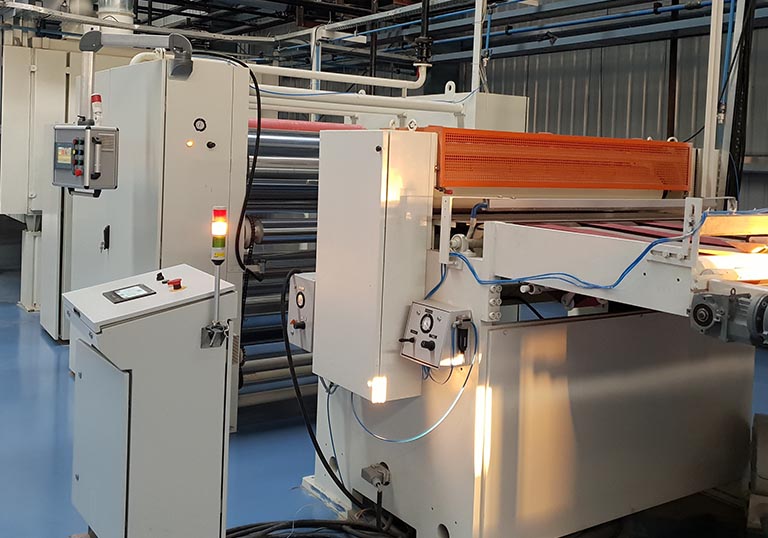

Rotary Cutter
The rotary cutter cuts the continuous paper web into sheets of desired length with precision. It ensures accurate cutting speed synchronization with the running web.
Key Features:
- Cutting length range: 2000 mm – 4500 mm
- Accuracy: ± 2 mm
- Servo-driven cutting system
- Easy blade replacement

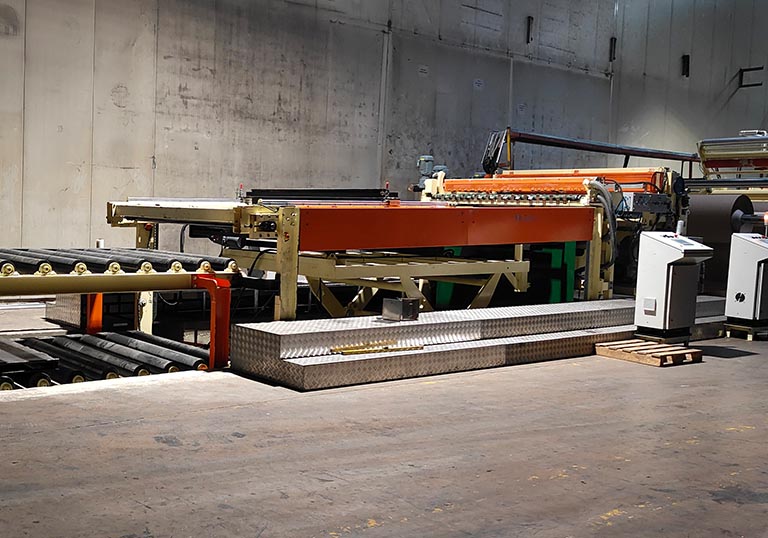

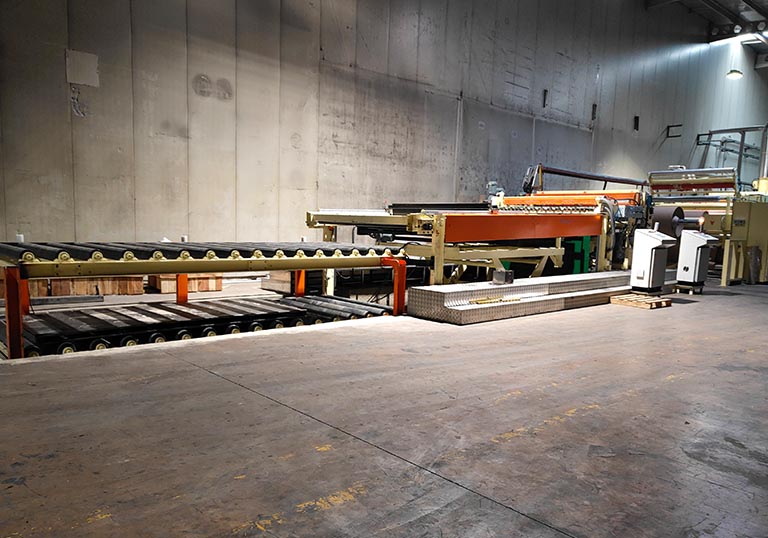

Pallet Changing System
The pallet changing system automates the stacking and palletizing of cut sheets, reducing manual handling and improving productivity.
Key Features:
Some of the main characteristics:
- Maximum stack height: 400 mm
- Smooth pallet changeover without production stoppage

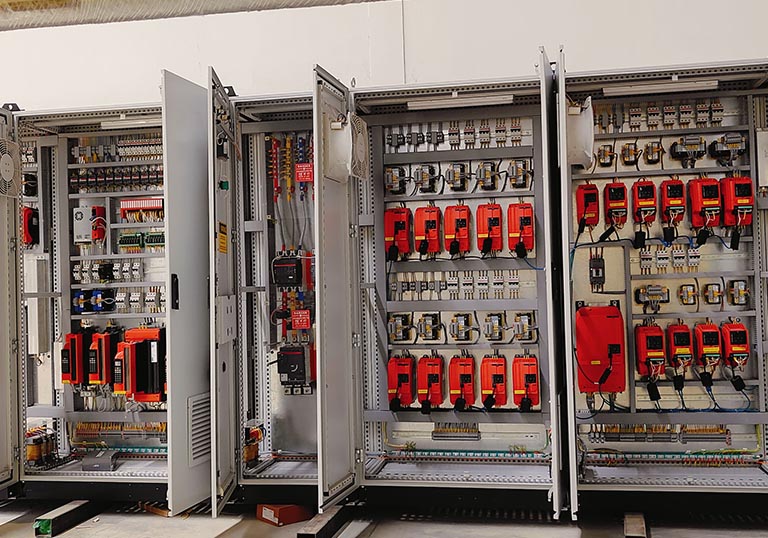

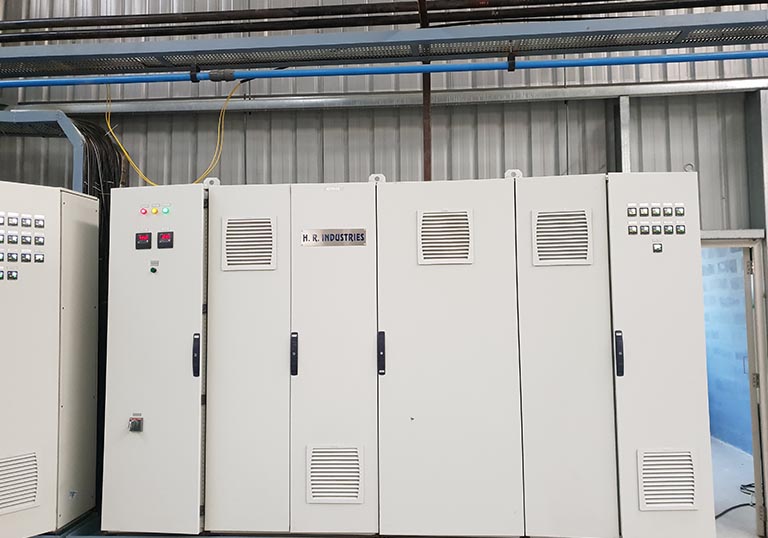

Panel Board
The panel board houses all the electrical, automation, and control systems of the production line. It integrates PLC, HMI, drives, and safety systems for seamless operation.
Key Features:
- PLC and HMI system
- Variable frequency drives for motors
- Touchscreen interface
- Real-time monitoring of temperature, tension, and speed
- Safety interlocks and emergency stop system
- Remote monitoring and troubleshooting capability
